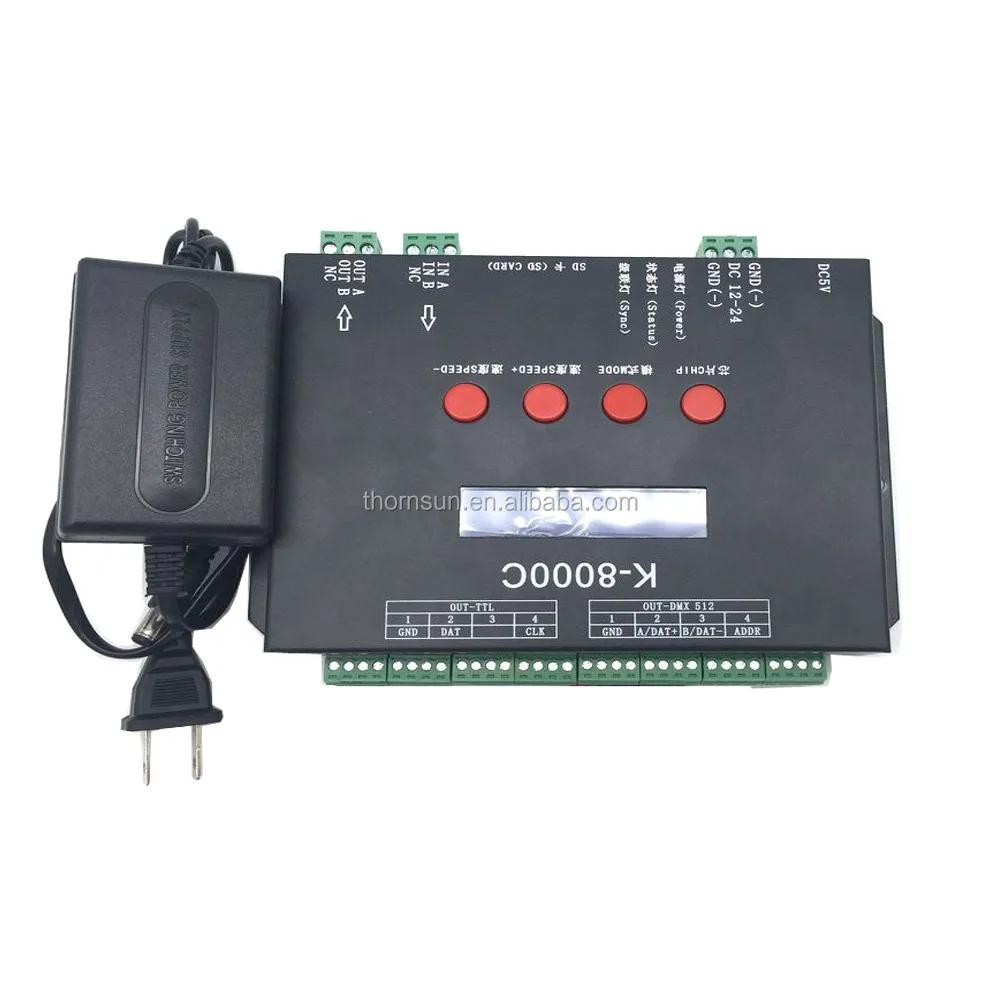

K-8000C sd card 8 output ports pixel led controller control sk6812 apa102c ws2811 dmx512 ect

FOB Reference Price:Get Latest Price
$96.00 - $135.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
TS-K-8000C
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 1 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TS
Type:
K-8000C SD Card LED Controller
Max. Load Power:
5W
Voltage:
DC5v input/DC12-24 input
Support IC::
RGBW/DMX512/ws2811/ws2801/ucs1903/sm16716/lpd6803/lpd8806/p9813 etc
Memory Card:
SD Card
Capacity::
128MB-32GB
Support Pixels::
1024*8pixels max
Control::
Off-oline control
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pc packing in one color box
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 1 To be negotiated
Product Description

K-8000C sd card 8 output ports pixel led controller control sk6812 apa102c ws2811 dmx512 ect

Features:
 1,32 to 65536 degree Gray control, Gamma correction procession handle.
 2,Support various point, line light source, and all kinds of rules and specific shaped handle.
3,The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).
4,The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
5,The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.
6,The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7,For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
8,Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
9,Enhanced 485 TTL and 485 differential (DMX) signal output.
10,The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

NOTE :
1.If support RGBW four channels' l01ights should select K-8000-RGBW.
 2.If support single channel light should choose K-8000-W, at this time, one channel means one pixel, the software effect make as white lighting.

Supported chip
Support chips(PC Software Select K-8000-RGB):
00: UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;
SM16703,16709,16712;WS2811;INK1003;LX3203,1603,1103;GS8205,
8206;SK6812(Support up to 1024*8=8192 pixels)
01:SM16716,16726(Support up to 1024*8=8192 pixels)
02:P9813(Support up to 1024*8=8192 pixels)
03:LPD6803(Support up to 1024*8=8192 pixels)
04:LX1003,1203(Support up to 1024*8=8192 pixels)
05:WS2801(Support up to 1024*8=8192 pixels)
06:LPD1886(Support up to 1024*8=8192 pixels)
07:TM1913(Support up to 1024*8=8192 pixels)
08:TM1914(Support up to 1024*8=8192 pixels)
09:P9883,P9823(Support up to 1024*8=8192 pixels)
10:DMX(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
11:DMX 500K(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
12:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
13:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)

System architecture diagram

Specific parameters
Memory Card:
Type : SD Card
Capacity : 256MB -32GB
File Format : FAT file format
Store files : *.led

Physical parameters
Weight : 0.8kg
Size : 17.5mm*9mm*3mm
Temperature : -20 ℃-85 ℃
Power Supply : DC 5V -24V
Power : 5W


Note :
 1,To copy files to SD card, you must format the SD card first, pay attention to is that each copy must be formatted first.
2,SD card must be formatted as FAT form or FAT32 form.
3,The SD card can not be hot-swappable, plug the SD card each time, you must first disconnect the power supply controller.

Detailed Images

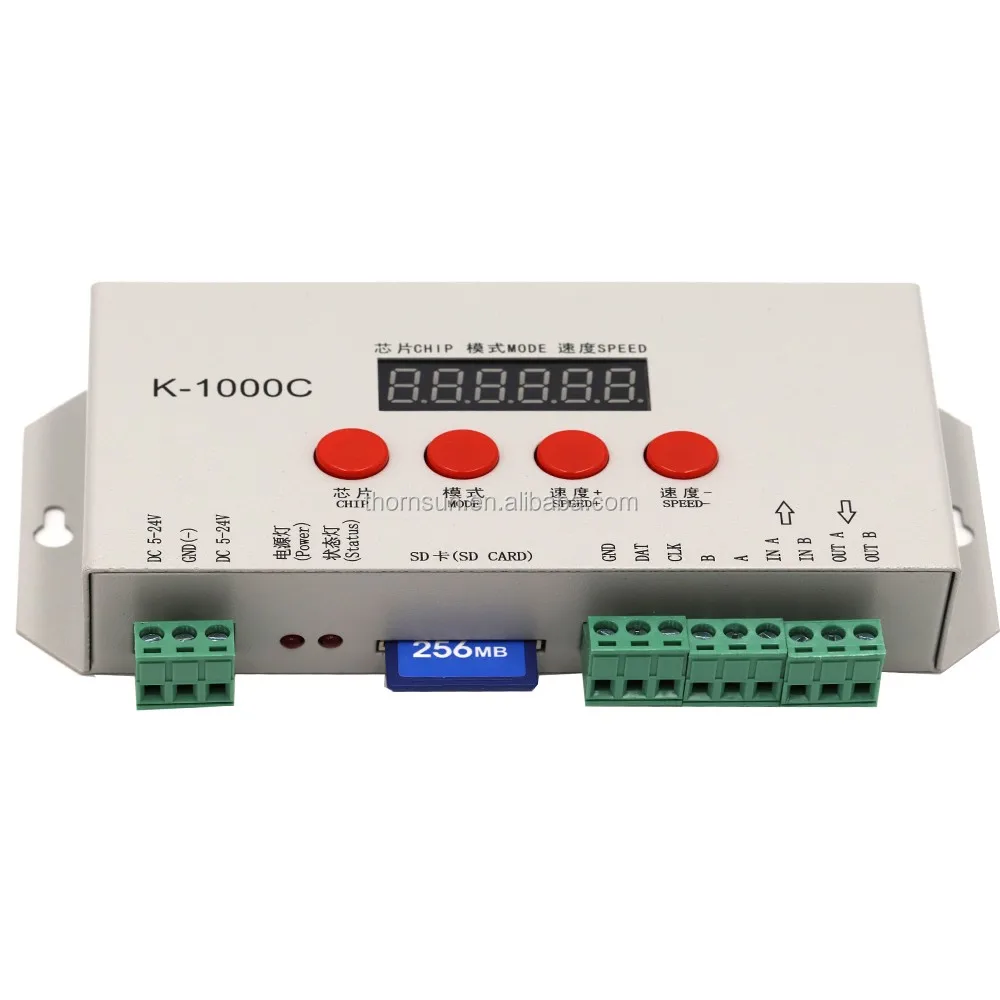

K-1000C
