ws2811 ws2812 ws2812b sk6812 sk9822 apa102 Wifi LED pixel strip controller SP108E

FOB Reference Price:Get Latest Price
$15.00 - $20.00 / Pieces | 1 Piece/Pieces (Min. Order)
Voltage:
5-24V
Model Number:
SP108E
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 3 5 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TS
Type:
Remote Control
Max. Load Power:
1-5W
Voltage:
DC5v-24v
Support IC::
ws2811/ws2801/ucs1903/sm16716/lpd6803/lpd8806/lpd9813 etc
Remote distance:
30meters
Product name:
SP108E wifi magic controller
Support Pixels::
2048pixels max
Control::
wifi controller
Size:
L85*W45*H22mm
Package size:
110*55*28mm
Net weight:
40g
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pc packing in one color box
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 3 5 7 To be negotiated
Product Description

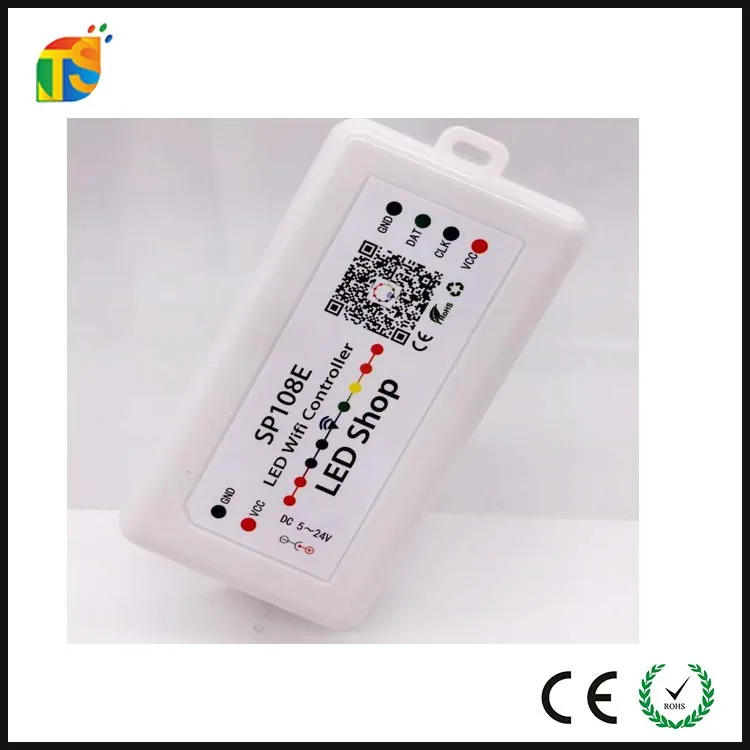

ws2811 ws2812 ws2812b sk6812 sk9822 apa102 Wifi LED pixel strip controller SP108E

Features:
1.Long distance APP remoter control Via WIFI
2.support  routring mode(AP) and LAN connection mode(STA)
3.Supportalmost all kinds of single line or double lines led driver IC
4.Brightness dinable,with 180 kinds of patterns and 8 kinds of color adjustable patterns
5.Creatively  using  from-image-to-effect  method for user to DIY any effect.
6. Support setting pixel number and segments number to 2048 pixel
7.DC5-24V wide range voltage input , reverse input protection
8.User setting saving

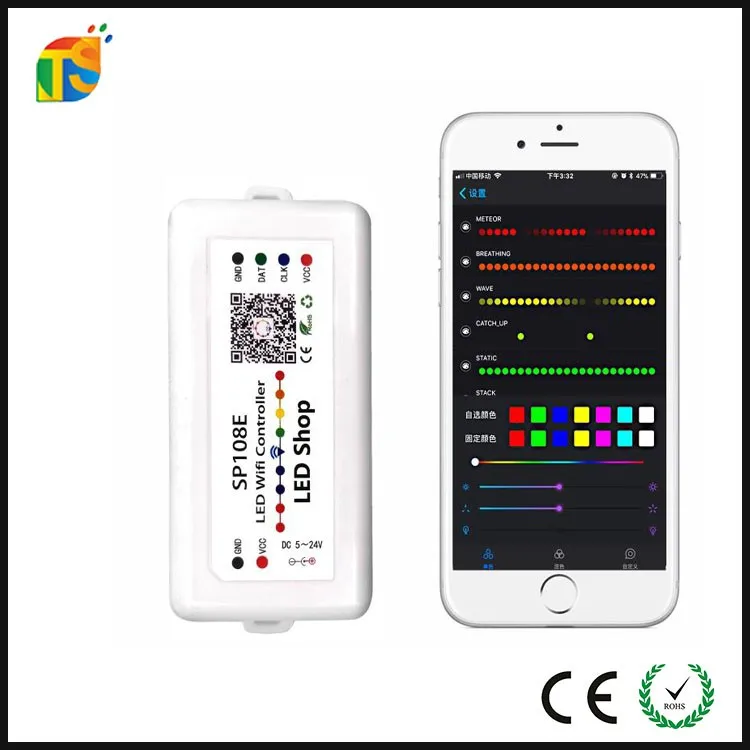

APP control
1.support system Andrioid OS system WIFI hardware support
2.Requires IOS version 10.0 abover
3.Requires Android OS version 4.4 abover
4.Search "LEDShop" in APP store or Google PLay or scan this QR code to download and install the APP,
Specificatiopns:
1.working temerature:-20°C--60°C
2.working Voltage: DC5V--24V
3.working Current:20mA--130mA
4.Remote distance:30 Meters
5.Product size: 85mm*45mm*22mm
6.Product weight:40g
7.Certificates:CE,ROSH
Working Mode and Connecting:
AP(Access Point) mode: controller and phone connect directly ,controller working as an acess point.
Connect steps:1. when the device is not connected to any WIFI network ,power on the controller and  wait for 20s
 and the controller will switch into AP mode
2.In the WIFI setting page,find and connect  the controller(named like SP108E_xxx,the default pin code is12345678),
3.Open the LED Shop App, then the controller will be showed on the device list
STA(Station)mode: Contrller and phone are in one same WIFI network,in this network.users can operate the controller smoothly
Connect steps:1.when the device is not connected to any WIFI network,power on the controller,controller will be ramain in Wait-For-Connet mode fo 20 seconds
2.Make sure that  your phone is cinnected to WIFI network,Open LED Shop APP, pressing the  Add Device button,input the WIFI pin code,the press the ok to confirm and wait for the  configure processing finish
3.When controller successfully enter the WIFI network, it  will be showed on the device list
4.User can select the controller and remove it out of the network by pressing the Remove Device button, then the controller will switch into AP mode.
Supported chip
WS2811,WS2812,WS2813,WS2801,SK6812-RGB,SK6812-RGBW,SK6812-WWA,LPD6803,LPD8806,UCS1903,UCS9812,APA102,APA104,TM1803,TM1804,TM1809,TM1812,TM1914,SM16703
