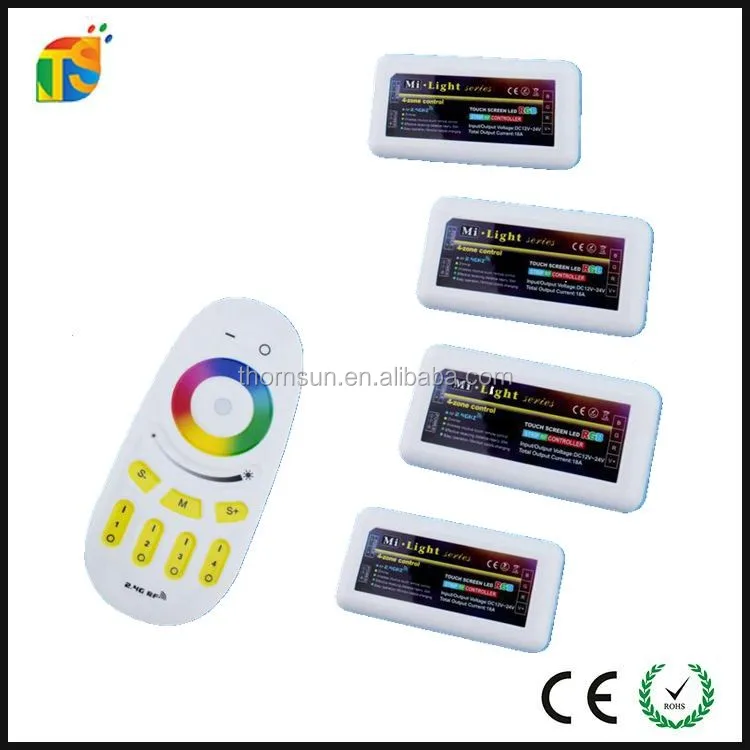

4-Zone Group Wireless RF rgb led strip Remote Controller + +4-zoneRGBW Touch remote

FOB Reference Price:Get Latest Price
$8.00 - $10.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TS
Model Number:
TS-RGBW24T
Type:
Remote Control
Max. Load Power:
288W
Voltage:
DC12-24v
Battery Type:
2pcs AAA Battery
Material:
ABS
Size:
120*52*20mm
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pc packing in one color box
Port
shenzhen
Lead Time :
Shipped in 7 days after payment
Product Description

4-Zone Group Wireless RF rgb led strip Remote Controller + +4-zoneRGBW Touch remote


2.4G high frequency wireless remote control

characteristics:
1,low power consumption
2,long distance transmission
3,strong anti-interference ability
4,,high speed telecommunications
5,the remote looks fashionable and elegant
6,with simple and practical functions of color changing and brightness dimming.
7,the capacitive touch screen design makes the remote easy to use.

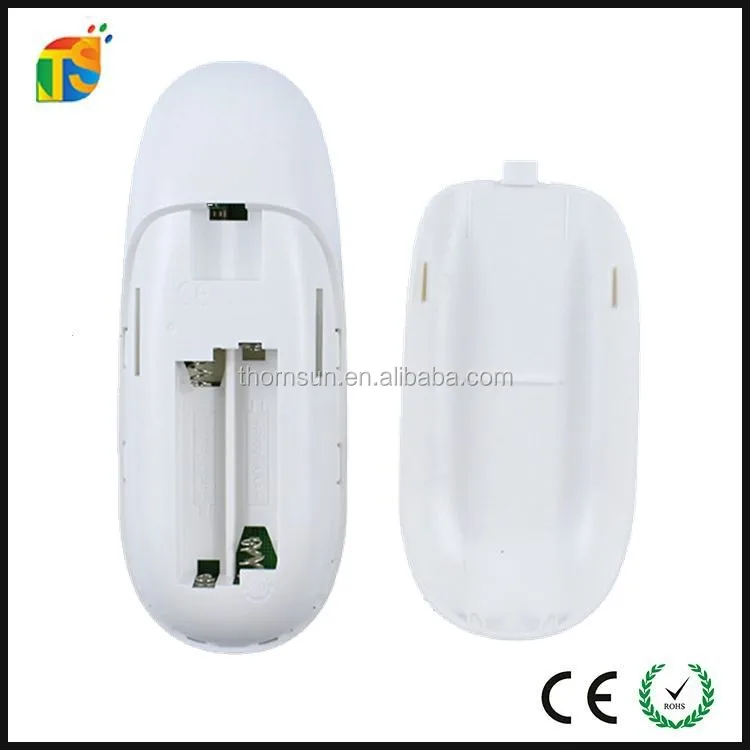

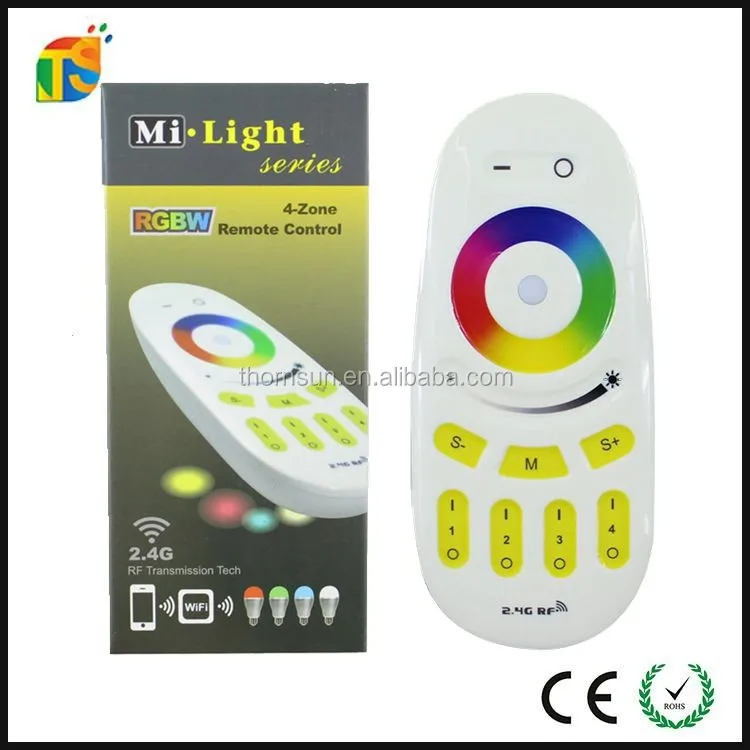

            Remote
Size
120*52*20mm
Power
AAA battery*2pcs
Material
ABS
Fabrication processing
Multicolor printing &UV varnish

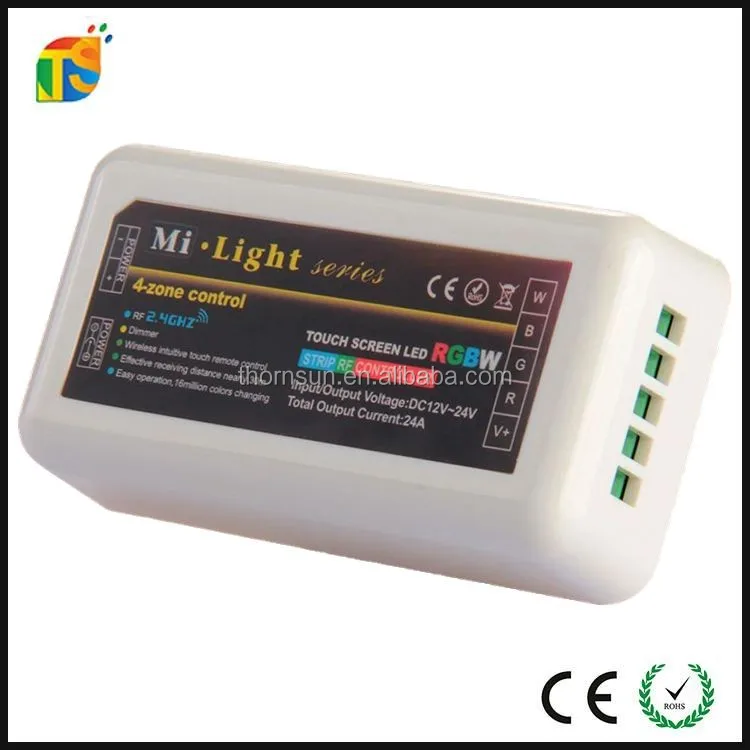

            Controller
Size
85*45*23mm
Working voltage
DC12V--24V
Control way
RGB three channels/RGBW four channels
Max load per channel
6A  each channel
Output connection
Commonanode
Telecontrol distance
30 meters
Programms
9 kinds
Detailed Images


Programs:

Programs 1(RGBW Fade Out)
This program fades in and fades out the color red,green,blue and white one after anther.
Programs 2 (Color Flash)
In this program,red,green,blue,white ,yellow purple flashes to change.
Programs 3 (Disco)
Different colors strobe and flash to change.
Programs 4 (Red Color Ramp up and flash)
In this program,red color brightens from 0%-100% and shuts down,then flashes three times.
Programs 5 (Green Color Ramp up and Flash)
In this program,green color brightens from 0%-100% and shuts down,then flashes three times.
Programs 6(Blue Color Ramp up and Flash)
In this program,blue color brightens from 0%-100% and shuts down,then flashes three times.
Programs 7(Color Change+Flash)
Here several colors fade into each other and then flash randomly
Programs 8(Fade in and Fade out)
Here different colors fade into each other.
Programs 9(Strobe White)
Just white color flashes up.

TIPS:
TO dim all RGBW lights at once or change the color ,first press ‘Master ON’.To do this with
individual lights,first press‘Zone ON’.Secondly,choose the color or brightness according to
the color ring or brightness ring.

For RGB led strip light,the white is mixed from Red,Green and Blue,so the white is not pure.
For RGBW led strip light,the white is pure white.

Linking new lights to the remote controls:
1.Choose which zone you want to assign the light(1 to 4).
2.Switch off the main power supply of the light in the select zone with the main switch or pull the plug.
3.Now switch on the light again and within 3 seconds shortly press one of the ‘Zone ON’ buttons
one time on the remote control.
4.When this link operation is successful,the light slowly blinks 3 times on and off.

Unlinking the lights:
1.Check via the remote control to see which zone(1 to 4)is already linked to a lights.
2.Switch off the main power supply of the lights with the main switch or plug from the socket.
3.Now switch on the light again within 3 seconds press 5 times quickly and shortly on one the
‘Zone ON’ buttons which you wan to unlink.
4.When this unlink operation is successful,the light quickly blinks 6 times on and off.

Grouping of several lights
You can add endless number of lights to a zone on the 4 channel remote by linking the lights to
different zones.This way you are completely flexible in creating different group combinations.
below you can see some grouping examples.
Attention:
1.The regular for sale is a kit(remote and controller).The user can re-programme freely as needed.One
remote can control countless controllers,but one controller can only be controlled by four remotes(Max).
2.Please check the battery installation and controller(totally discharge the power),when you
programme after switching off and switching on.
