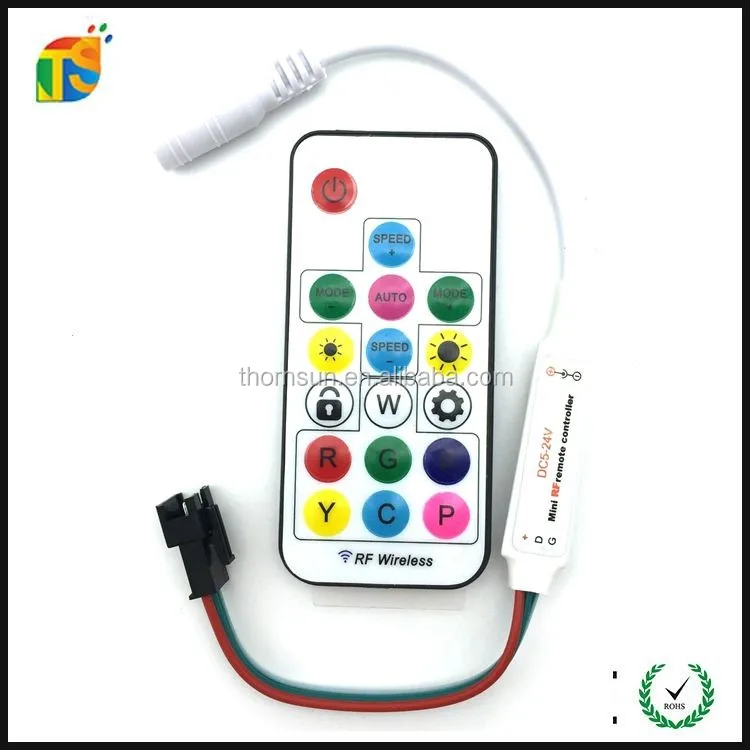

DC 5V-12V 17 keys 300 modes RF remote control mini digital led controller

FOB Reference Price:Get Latest Price
$2.00 - $5.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TS
Model Number:
TS- RC-17
Type:
Remote control
Voltage:
DC5v-12V
Support IC::
ws2812/ws2811/sk6812/sk6818/tm1803/tm1804/...
Max pixel QTY:
2048
Connector:
DC3 pin/4 pin
Size:
175*53*27mm
Product name:
17 key mini digital led controller
Mode QTY:
300
Warranty:
2 Years
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pc packing in one color box
Port
shenzhen
Lead Time :
Shipped in 7 days after payment
Product Description

DC 5V-12V 17 keys 300 modes RF remote control mini digital led controller

Please note this one is for full color/digital/smart/programmable led product, if need single color or normal rgb color, please contact us for other items!
This item is very suitable for small projects and test function! Easy to use: connect DC connector to power supply, and insert the 3-pin or 4-pin connector to strips/modules. 300 programs are enough for normal use!

17 Key Mini-RF controller operating instructions

 Features:
1. RF Remote control,long distance,mini size,wire connection is simple and very easy to use;
2. Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
3. With 300 kinds of patterns,which are vivid and beautiful;
4. Each controller can control up to 2048 pixels;
5. With user setting saving functionality;
6. Brightness adjustable.
7.Preventing reverse connection of power supply.

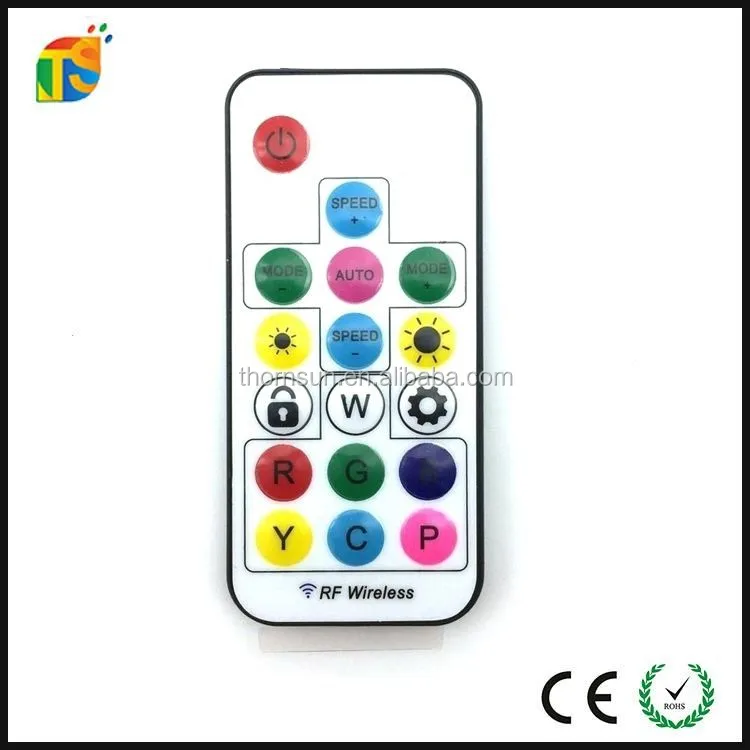

2.Remote Controller

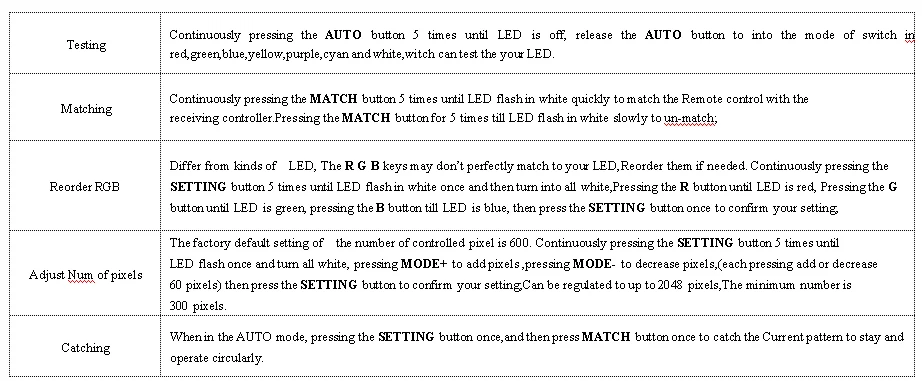

1.Functions Of Each Button:
2. Usage :

3.Receiving Controller:
● Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC;
● The receiver controller working voltage :5V—12V-supply-voltage;
● Cautions: Please make sure the power supply voltage is match to your controller before you power it.

Detailed Images

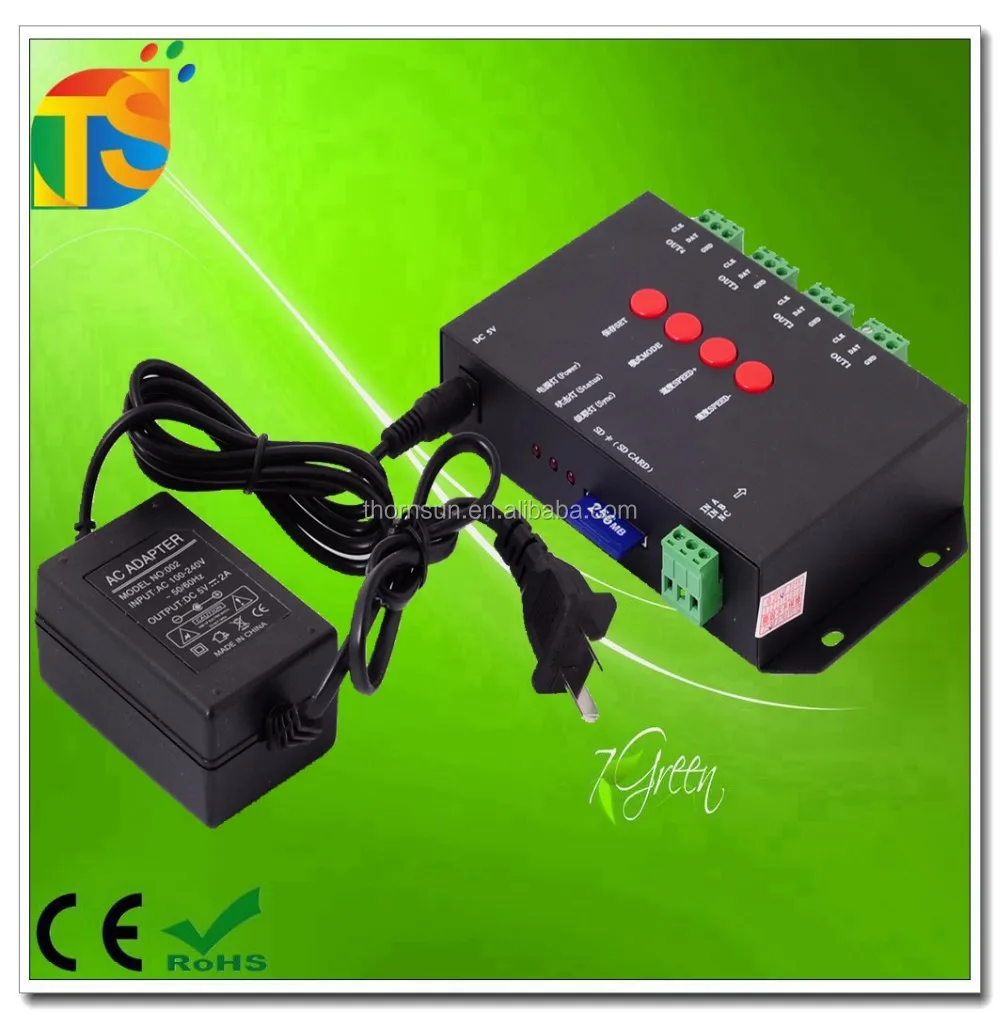

We also have other types T- series  SD card



controller   T4000C T8000C T200K


T4000C


T1000s



T200K
