12v addressable ws2815 96leds/m rgb waterproof led strip

FOB Reference Price:Get Latest Price
$12.00 - $15.00 / Meter | 1 Meter/Meters (Min. Order)
Wattage:
23.4w
Emitting Color:
RGB
Type:
Flex LED Strips
Samples:
$15.00 /Meter | 1 Meter (Min. Order) | Buy Samples
Lead Time:
Quantity(Meters) 1 - 100 >100
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 20 Meters)
Graphic customization (Min. Order: 20 Meters)
Report Suspicious Activity
Overview
Quick Details
Lighting solutions service:
Project Installation
Input Voltage(V):
DC12V
Lamp Power:
23.4W/M
Lamp Luminous Flux(lm):
18-20lm/led
CRI (Ra>):
80
Working Temperature(℃):
10 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Copper
Certification:
ce, RoHS
Place of Origin:
Guangdong, China
Brand Name:
TS
Model Number:
TS-10096-ws2815
Application:
Theme Park
Light Source:
LED
Warranty(Year):
2-Year
Luminous Efficacy(lm/w):
12
Emitting Color:
yellow/red/green/blue/white
LED Light Source:
Epister5050
Color Temperature(CCT):
full color
IP Rating:
IP20/IP65/IP67/IP68
LED Quantity:
96LEDs/m
Warranty:
2years
Beam Angle:
120 Degree
Size:
12mm
CRI(Ra):
>80
Product Name:
ws2815b led strip
Supply Ability
Supply Ability:
100000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
100m 12v addresable led strip
Port
shenzhen
Lead Time :
Quantity(Meters) 1 - 100 >100
Est. Time(days) 5 To be negotiated
Product Description
12v addressable ws2815 96leds/m rgb waterproof led strip
Model number
TS-10096-W2815
 LED TYPEE
SMD 5050  RGB  chip
Available color
RGB
IC Model
WS2815
Color
Addressable full color   ,
View angle
120 degree
LED QTY
96LEDS/M
POWER
23.4w/m
PCB Width
12mm
Voltage
DC5V
Installation
wiht 3M adhesive back ,easy for installation
IP rate
IP20/IP65(Silicon tube )/IP67/IP68
Package
5M/reel .with anti-static bag
Application
indoor /outdoor decorative lighting  ,ceiling lighting ,sign lighting etc.

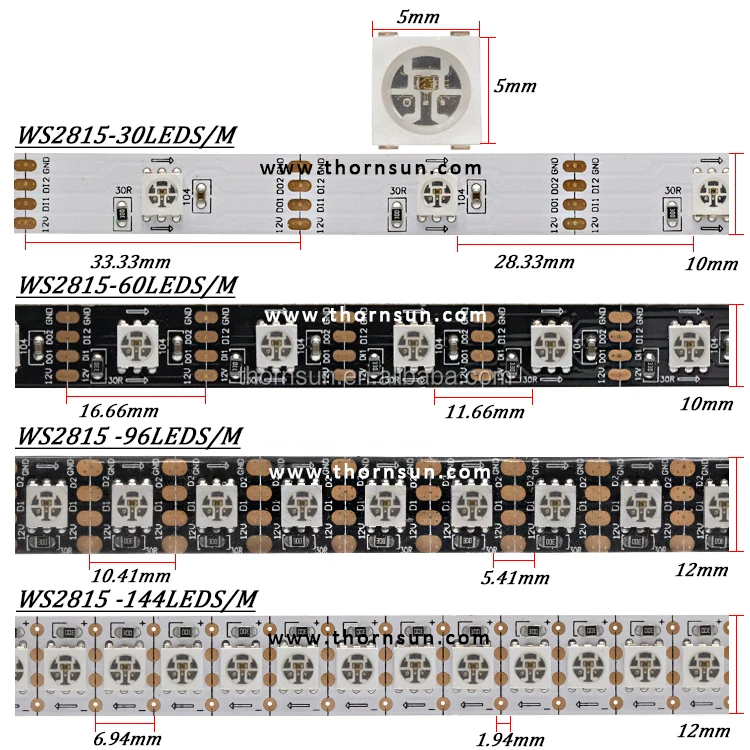

12v Indivially Addressable Ws2815 60leds/m Pixel Strip Rgb Led Tape
TYPE
30leds/m
60leds/m
IC
W2815
W2815
PCB width
10mm
10mm
standard  length
5 meter/roll
5meter /roll
PCB color
white/black
white/black
Voltage
DC5V
DC5v
Watts
7.2w/m
14.4w/m
cutted
per 1 LED
per 1LED

Detail use information:

12v Indivially Addressable Ws2815 96leds/m Pixel Strip Rgb Led Tape

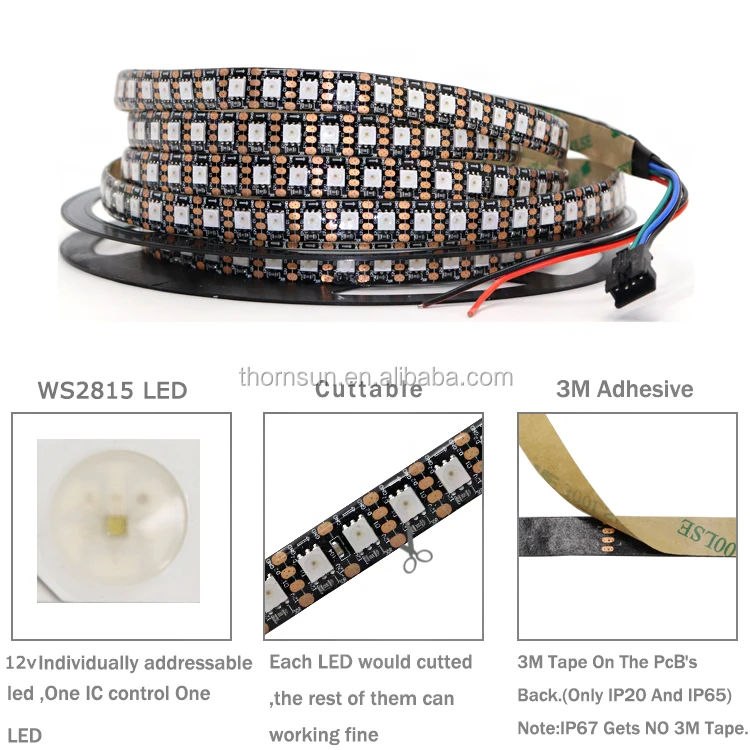

1)Addressable full color break point   led strip ws2815 ic built-in 5050 RGB led chip
2)60pcs led per one meter
3) individually control ----------1 ic& 1 led chip
4)same as our  ws2813 addressable strip ,this one cut-able each single led .

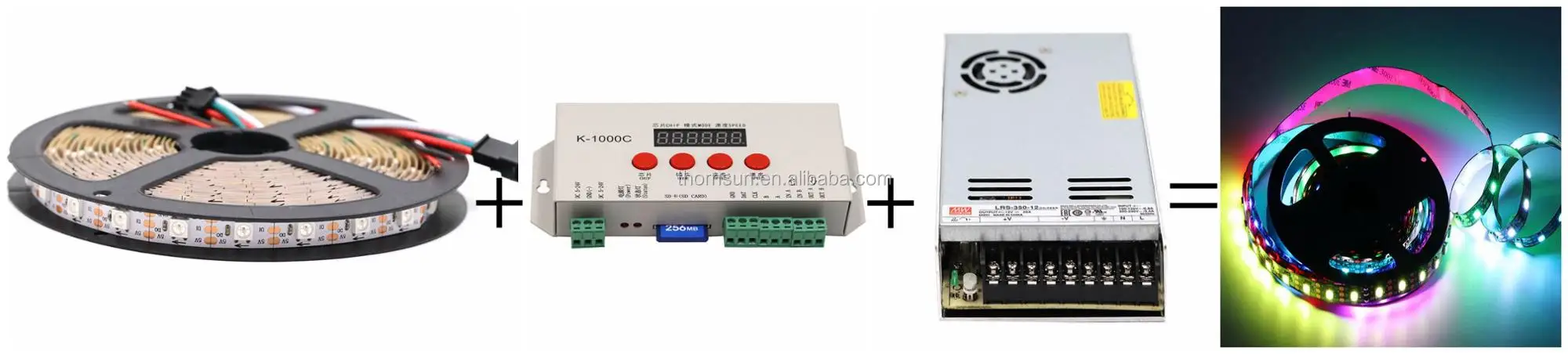

Connection:

12v Indivially Addressable Ws2815 60leds/m Pixel Strip Rgb Led Tape
SPI signal :LED strip+ LED power  supply +led controller
DMX  control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )
Controller and Power supply:
T-1000S  +Meanwell power:

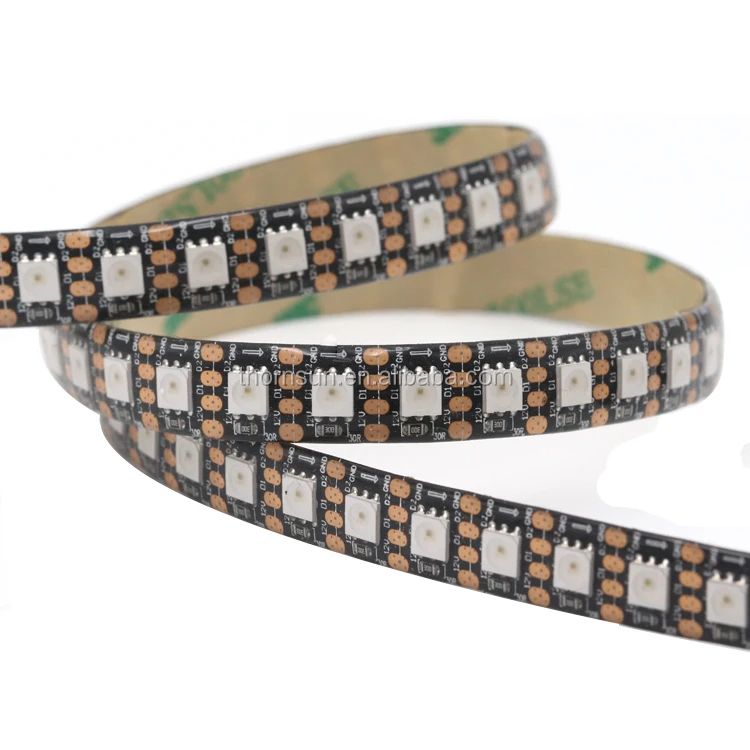

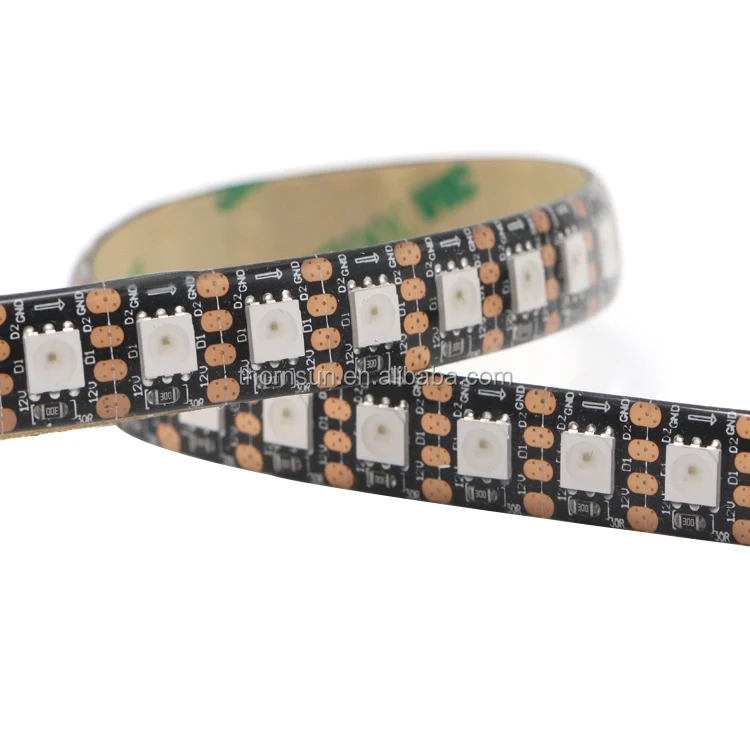

Detailed Images
Related Products

Addressable  WS2812B  30/60/144 LEDS /m led strip


Addressable APA102  60LES/M led strip

         WS2815  12V led strip

Application
house decorative lighting

 outdoor lighting

 logo   decorative lighting
