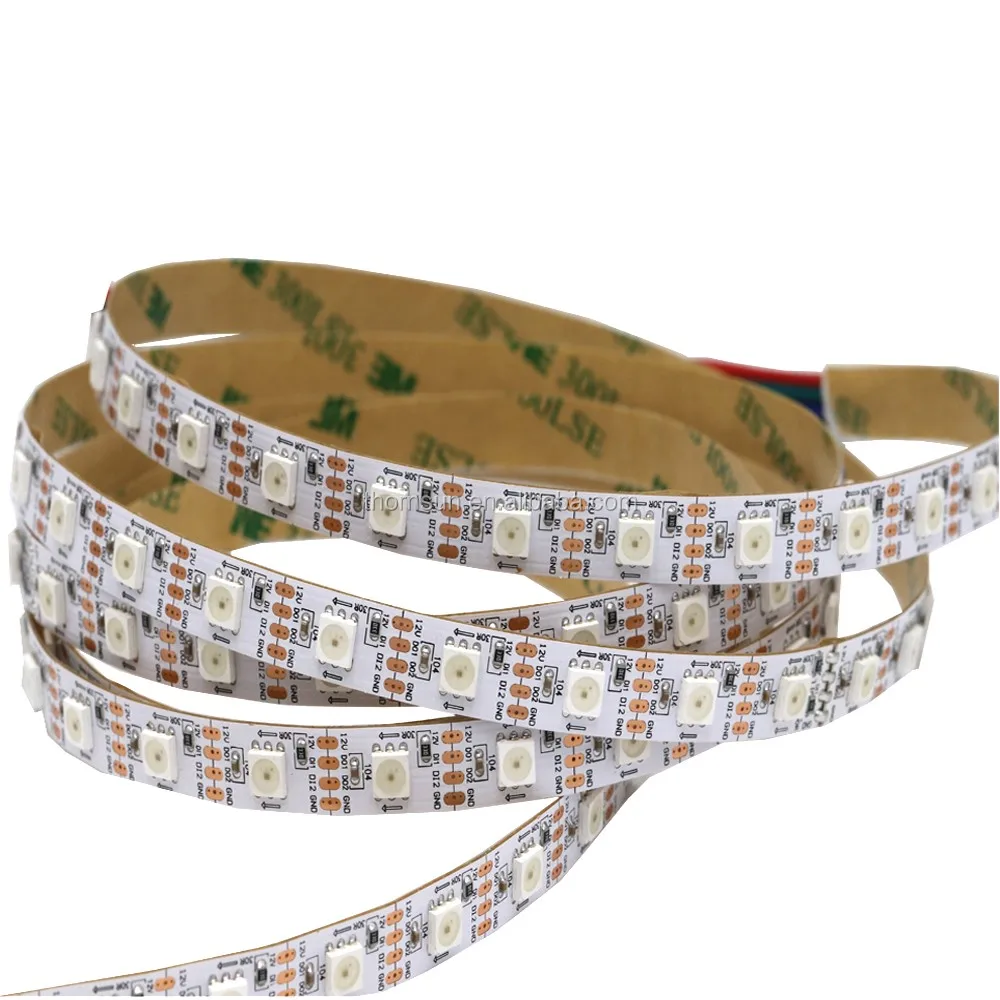

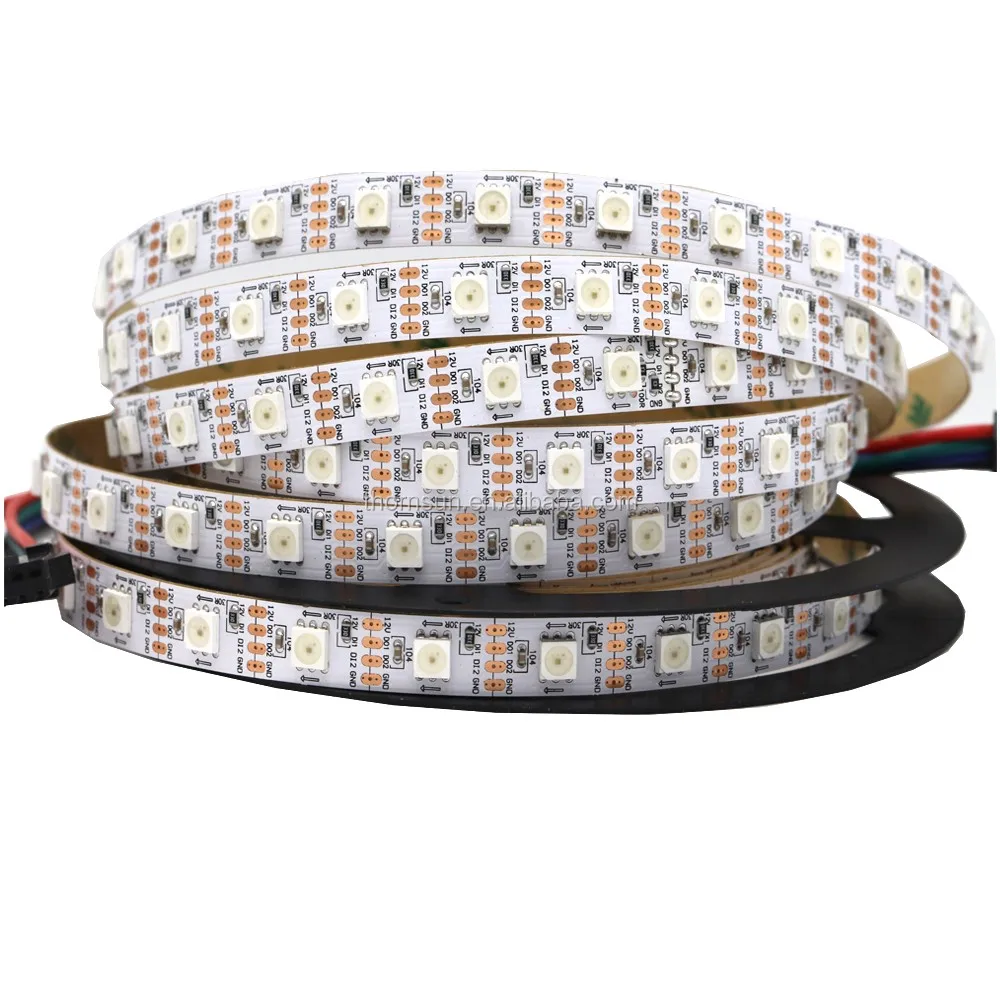

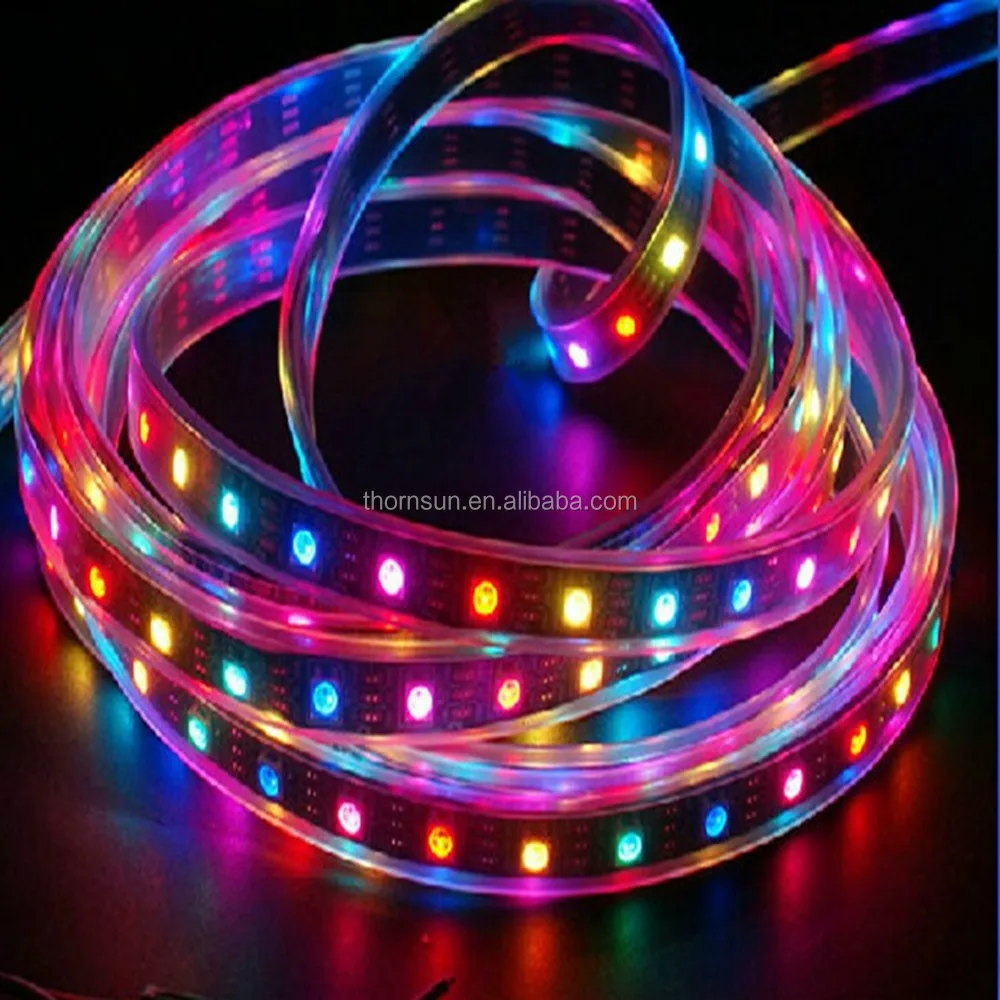

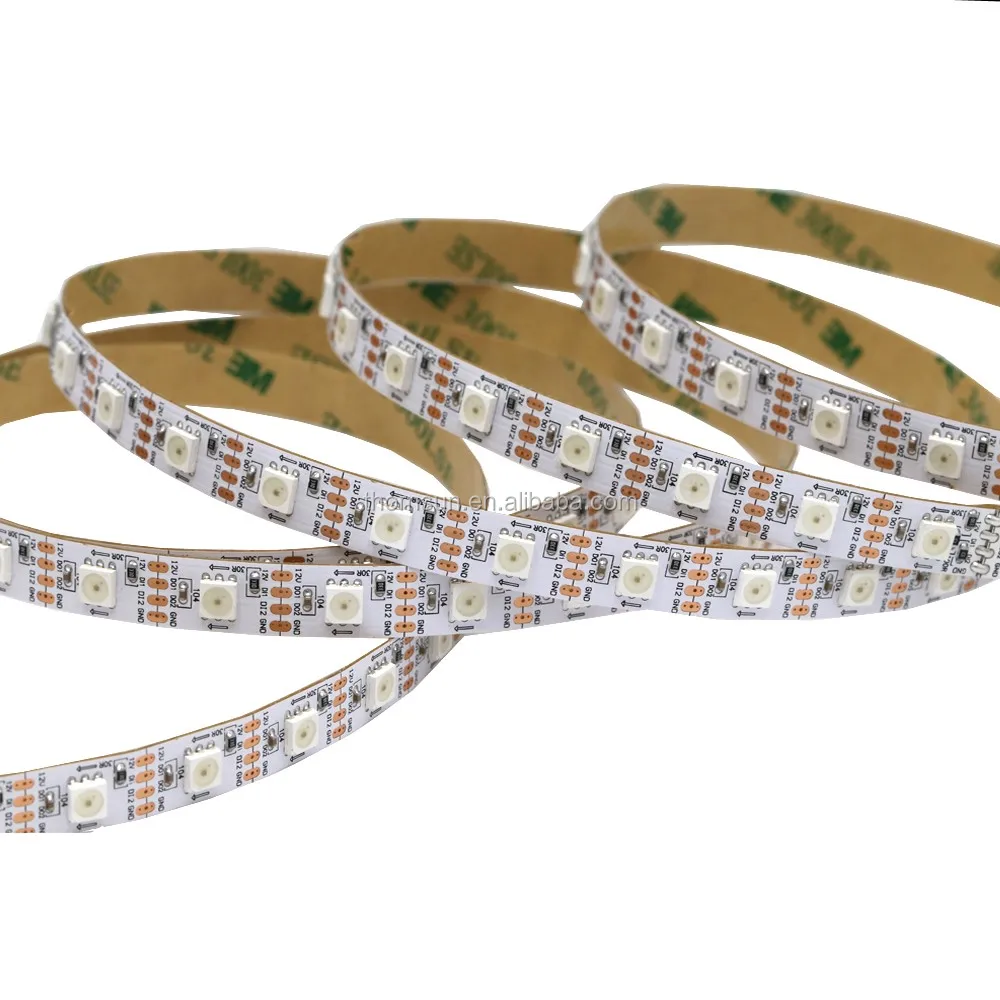

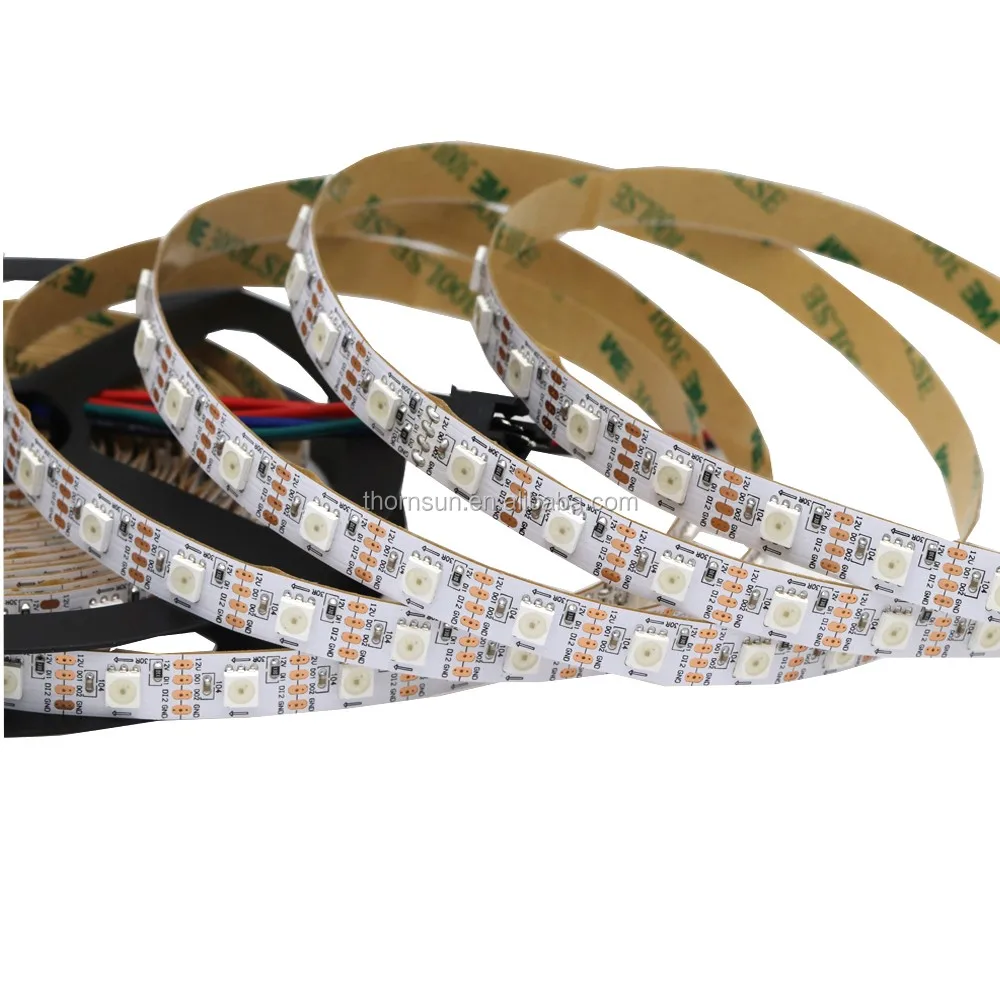

Indivally addressable ws2815 12v 60led/m rgb break point led pixel strip

FOB Reference Price:Get Latest Price
$6.00 - $8.00 / Meter | 5 Meter/Meters (Min. Order)
Emitting Color:
RGB
Report Suspicious Activity
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Lamp Power:
14.4W/M
Lamp Luminous Flux(lm):
18-20lm/led
CRI (Ra>):
80
Working Temperature(℃):
10 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Copper
Certification:
ce, RoHS
Place of Origin:
Guangdong, China
Brand Name:
TS
Model Number:
TS-WS2815-60
Application:
LANDSCAPE
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
Epister5050
Emitting Color:
RGB
IP Rating:
IP20/IP65/IP67/IP68
LED Quantity:
60LEDs/m
Warranty:
2years
Beam Angle:
120 Degree
Size:
10mm
Emitting color:
addressable
Product Name:
ws2815b led strip
Supply Ability
Supply Ability:
50000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
5meter/roll
waterproof: 60rolls/carton, 17.5KG/Carton
non-waterproof: 90rolls/carton, 12.4KG/Carton(Volume Weight)
Carton Size: 46cmx27cmx46cm
Port
shenzhen
Product Description
Indivally addressable ws2815 12v  60led/m rgb break point led pixel strip
Model number
TS-W2815-60
 LED TYPEE
SMD 5050  RGB  chip
Available color
RGB
IC Model
WS2815
Color
Addressable full color   ,
View angle
120 degree
LED QTY
60LEDS/M
POWER
14.4w/m
PCB Width
10mm
Voltage
DC5V
Installation
wiht 3M adhesive back ,easy for installation
IP rate
IP20/IP65(Silicon tube )/IP67/IP68
Package
5M/reel .with anti-static bag
Application
indoor /outdoor decorative lighting  ,ceiling lighting ,sign lighting etc.
Indivally addressable ws2812b 60led/m rgb dream color led pixel strip 5m
TYPE
30leds/m
60leds/m
IC
W2815
W2815
PCB width
10mm
10mm
standard  length
5 meter/roll
5meter /roll
PCB color
white/black
white/black
Voltage
DC5V
DC5v
Watts
7.2w/m
14.4w/m
cutted
per 1 LED
per 1LED

Detail use information:

Indivally addressable ws2815 60led/m rgb break point led pixel strip

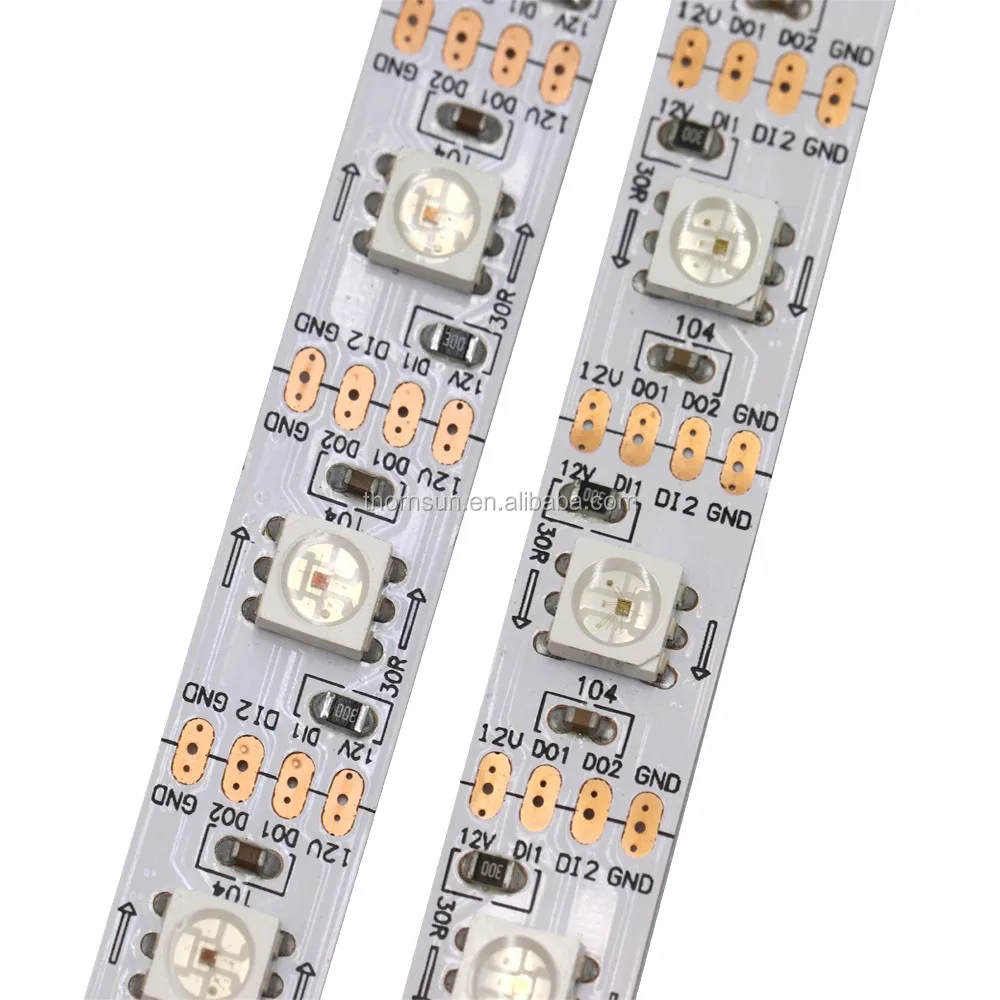

1)Addressable full color break point   led strip ws2815 ic built-in 5050 RGB led chip
2)60pcs led per one meter
3) individually control ----------1 ic& 1 led chip
4)same as our  ws2813 addressable strip ,this one cut-able each single led .


Connection:

Indivally addressable ws2815 12v 60led/m rgb break point dream color led pixel strip 5m

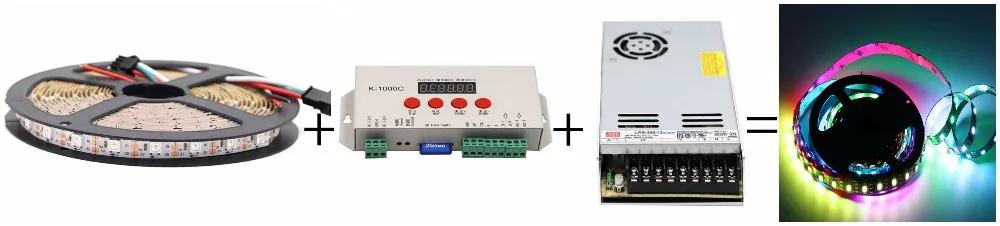

SPI signal :LED strip+ LED power  supply +led controller
DMX  control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )
Controller and Power supply:
T-1000S  +Meanwell power:
Detailed Images
