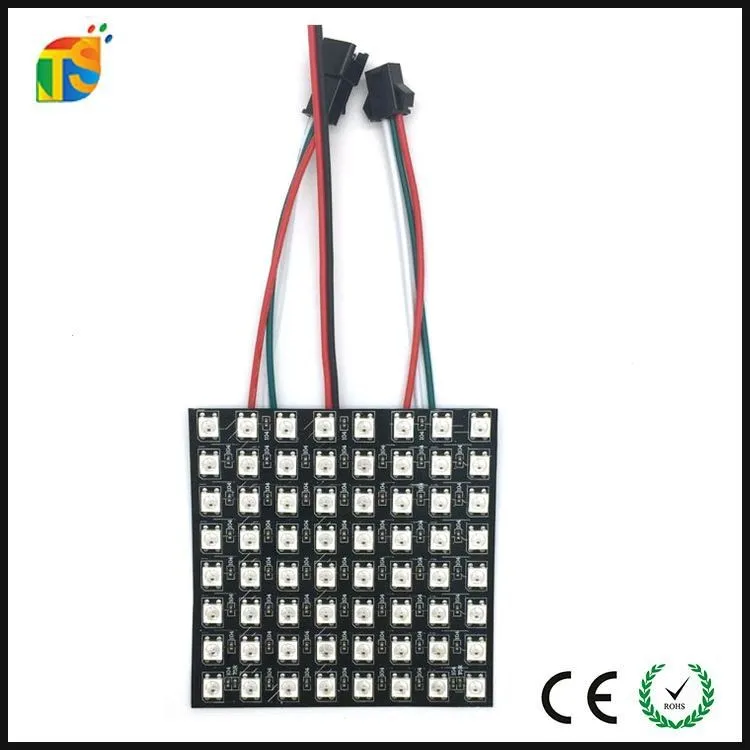

8x8 Pixel RGB LED dot Matrix led screen

FOB Reference Price:Get Latest Price
$4.50 - $8.60 / Piece | 5 Piece/Pieces (Min. Order)
Color:
Colorful
Wattage:
Other
Emitting Color:
Changeable
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 5 7 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Support Dimmer:
Yes
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Lamp Power:
18W
Lamp Luminous Flux(lm):
18lm
CRI (Ra>):
80
Working Temperature(℃):
10 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Copper
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
TS
Model Number:
TS-sk6812-64
Application:
HOTEL
Light Source:
LED
LED Light Source:
SMD5050
Color Temperature(CCT):
Addressable
IP Rating:
IP20/IP65/IP67/IP68
LED Quantity:
60LEDs/m
Warranty:
2years
PCB size:
80*80mm
IC chip:
sk2812
LED signal:
SPI
View angle:
140 degree
LED QTY:
64pcs
Item Type:
Light Strips
Supply Ability
Supply Ability:
50000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
2pcs/bag, 120pcs/bag
12kg/carton(volume weight)
Carton Size: 46cmx27cmx46cm
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 5 7 10 To be negotiated
Product Description

8x8 Pixel RGB LED dot Matrix led screen

Model number
TS-sk6812-64
 LED TYPEE
SMD 5050  RGB  chip
PCB SIZE
80mmx80mm
IC Model
sk6812
Color
Addressable full color
View angle
140 degree
LED QTY
64LEDS
POWER
18W
Voltage
DC5V
PCB  Pitch
10mm
IP rate
IP20/IP65(Silicon tube )/IP67/IP68
Package
5M/reel .with anti-static bag
Application
indoor /outdoor decorative lighting  ,ceiling lighting ,sign lighting etc.

Detail use information:

Flexible 8x8 Neon Pixel RGB LED dot Matrix led screen
1)You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,
thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.
2)These panels require a 5V low voltage input for power which needs to be able to source a good amount of current
– up to 5A in most uses (15A if all LEDs are set to bright white, which is NOT recommended).

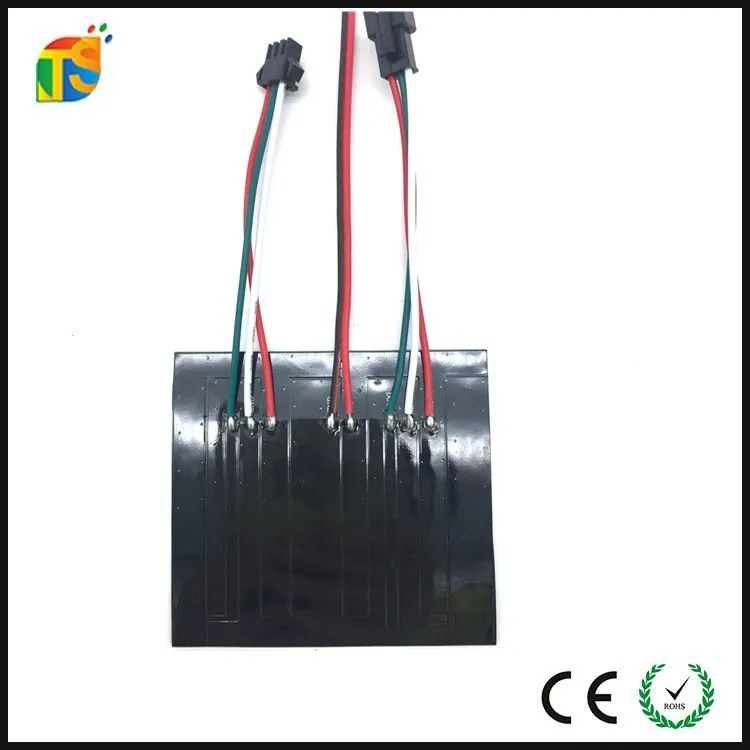

3)Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking for
a large panel of addressable LEDs to fit the contours of almost any surface you've come to the right place.
4)Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when
bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.
Needless to say, do NOT fold this matrix in half!

Connection:

Flexible 8x8 Neon Pixel RGB LED dot Matrix led screen
SPI signal :LED strip+ LED power  supply +led controller
DMX  control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )
Controller and Power supply:
T-1000S  +Meanwell power:
